Arid Bilge Systems
Arid Bilge Systems Series 4
Available with 4 to 8 independently controlled intake ports
Arid Bilge is automatic, reliable, flexible, and best of all, it really works.
- Eliminate the #1 source of on board odors
- Lower on board humidity and prevent condensation damage
- Find small leaks that now leave trails through a dry bilge
- Stop mold and mildew before it starts to grow
- Enhance the vessel’s resale value
- Optional USCG approved 15ppm oily water monitored systems available
You will notice the Arid Bilge difference within 24 hours of installation
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Height |
15 inches / 38 centimeters |
| Box width |
9 inches / 23 centimeters |
| Depth |
7.5 inches / 19 centimeters |
| Box dry weight |
15 pounds / 7 kilograms base unit |
| Intake tubing |
3/16” Polyethylene tubing 200 feet for 4 zone, + 100 feet for 5 & 6 zone, + 200 feet for 7 & 8 zone |
| Unit Maximum Expected Flow Rate |
11 US gallons / 39 liters per hour |
| Power |
Choose 12 volt DC or 24 volt DC version |
| Power draw |
0.09 amp (90 milliamps) average standby draw, 0.8 amps average run draw at 12 volt DC with one active zone |
| Certifications |
This unit meets USCG 33CFR 183.410 ignition protection |
| Intake ports |
3/16” Alkon push lock with solenoid valves, soft expandable tubing for pinch valves |
| Discharge port |
1/2" barbed fitting |
| Control |
PLC Direct Logic 05 Koyo D0-05 processor, software proprietary. |
| Compressor / vacuum pump |
Schwarzer Precision |
| Main unit material |
Air injected white PVC plastic |
| Limited warranty |
One year parts and labor. |

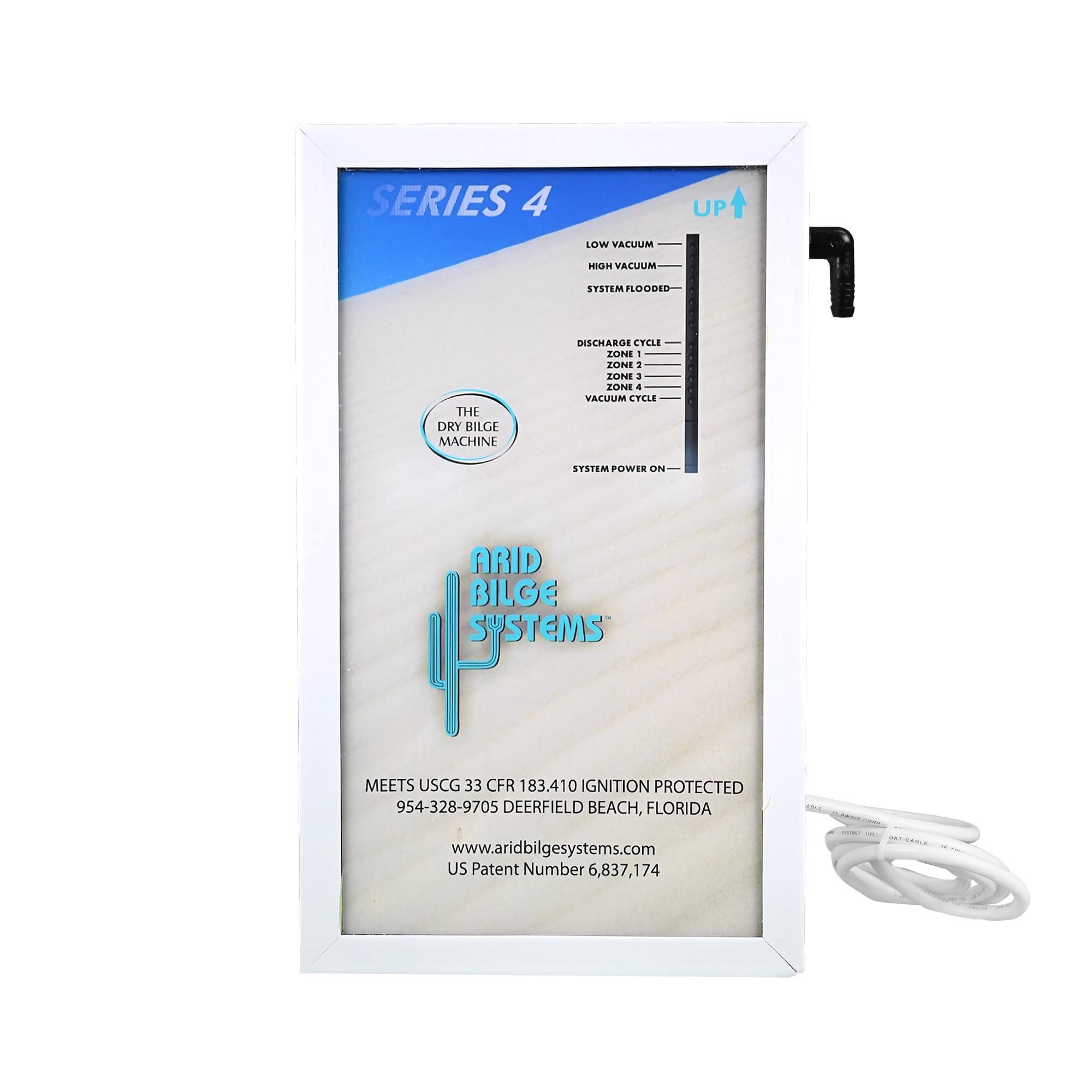

| Face |
Clear Lexan with back surface applied graphics with LED indicator lights |
| Available Upgrades |
Standard Solenoid Valves, Standard Solenoid Valves and Hour Meters, Pinch Valves, Pinch Valves and Hour Meters |

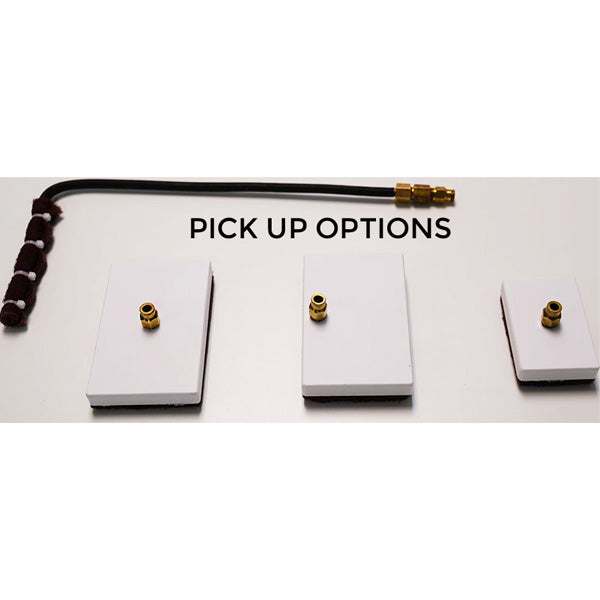

| Pickups |
Recommended selection, Custom selection |
