Series 1 units have a single intake port with a built in power supply that accepts either 12 or 24 volt DC power.
Arid Bilge is automatic, reliable, flexible, and best of all, it really works.
- Eliminate the #1 source of on board odors
- Lower on board humidity and prevent condensation damage
- Find small leaks that now leave trails through a dry bilge
- Stop mold and mildew before it starts to grow
- Enhance the vessel’s resale value
- Available with a single intake port (zone) only
You will notice the Arid Bilge difference within 24 hours of installation.
| Weight | 5 lbs |
|---|---|
| Dimensions | 10 × 9 × 6 in |
| Height |
7.94 inches / 20.15 centimeters |
| Box width |
5.5 inches / 13.9 centimeters |
| Depth |
4.25 inches / 10.7 centimeters |
| Box dry weight |
4 pounds / 1.9 kilograms |
| Intake tubing |
5/32” diameter, 20 feet fixed length, excess can be spooled but not cut. |
| Unit Maximum Expected Flow Rate |
5 US quarts / 5 liters per hour |
| Power draw |
0.022 amp average standby draw, 0.26 amp average run draw @ 12 volt DC |
| Certifications |
This unit meets USCG 33CFR 183.410 ignition protection |
| Intake ports |
One |
| Discharge port |
1/2" barbed fitting |
| Control |
Software and processor – proprietary |
| Compressor / vacuum pump |
Schwarzer Precision |
| Intake valves |
None |
| Main unit material |
Air injected white PVC plastic |
| Limited warranty |
one year parts and labor. |
| Voltage |
Accepts 12 volt DC or 24 volt DC input power. |

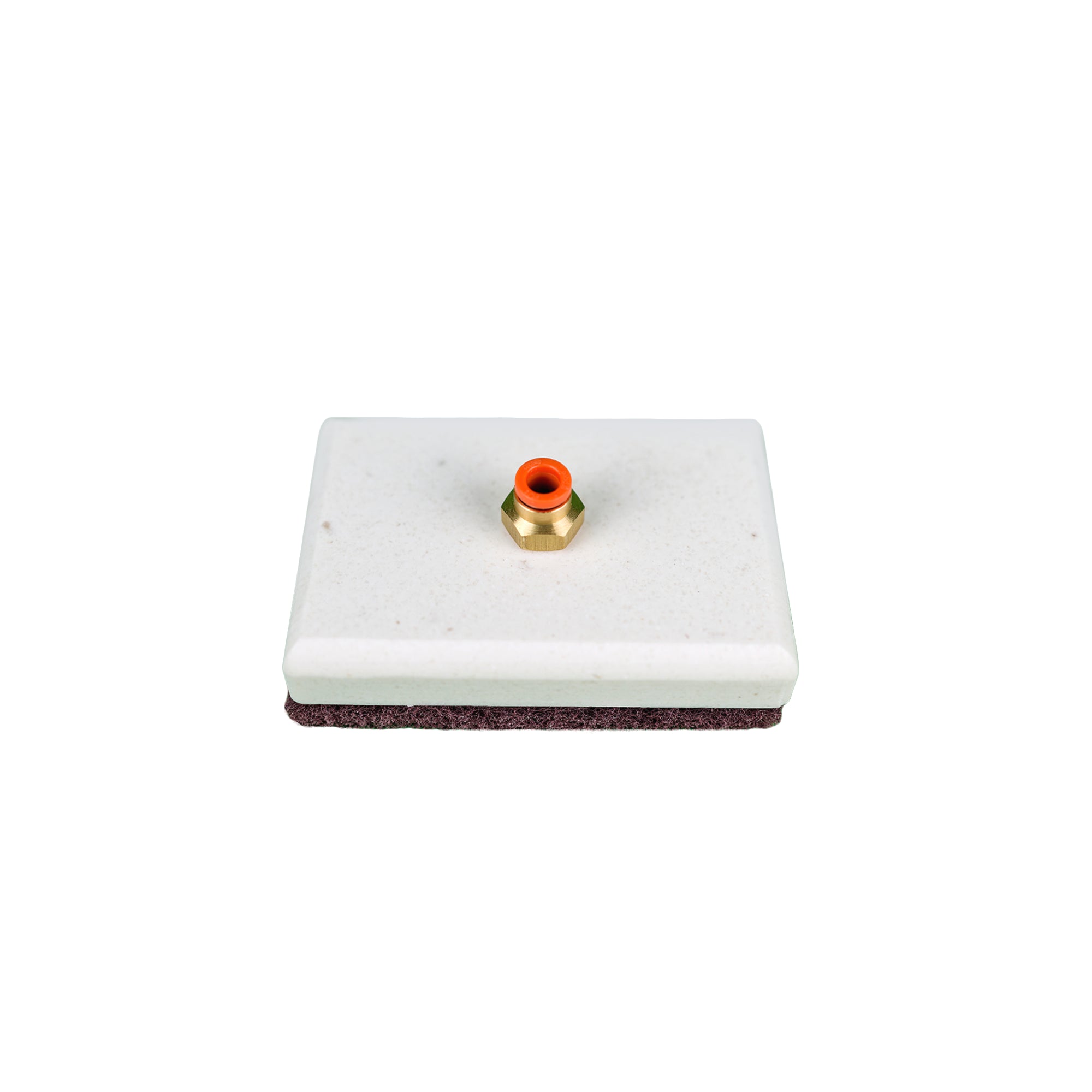

| Pickup |
Mini Standard, Offset, Pickup Wand |
