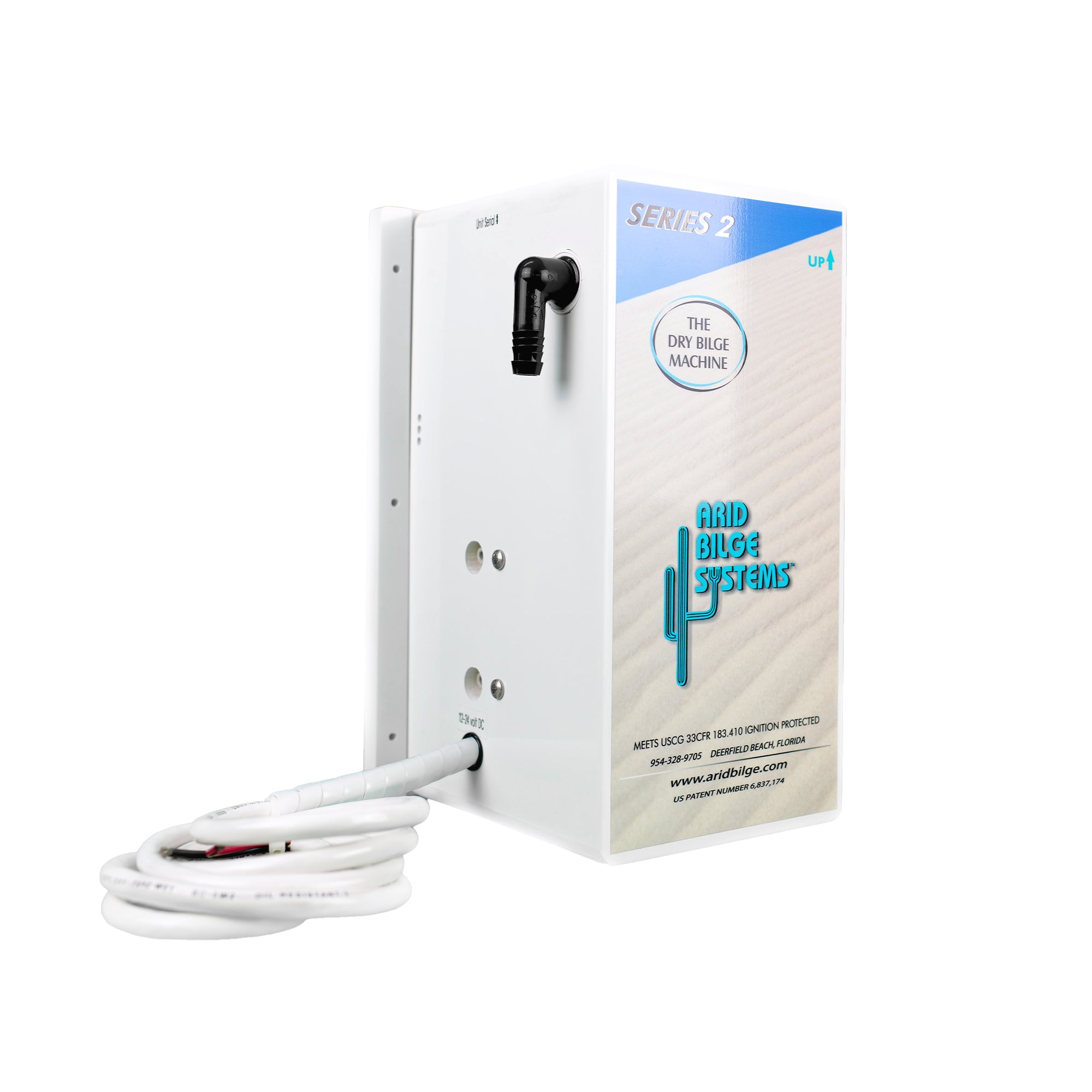

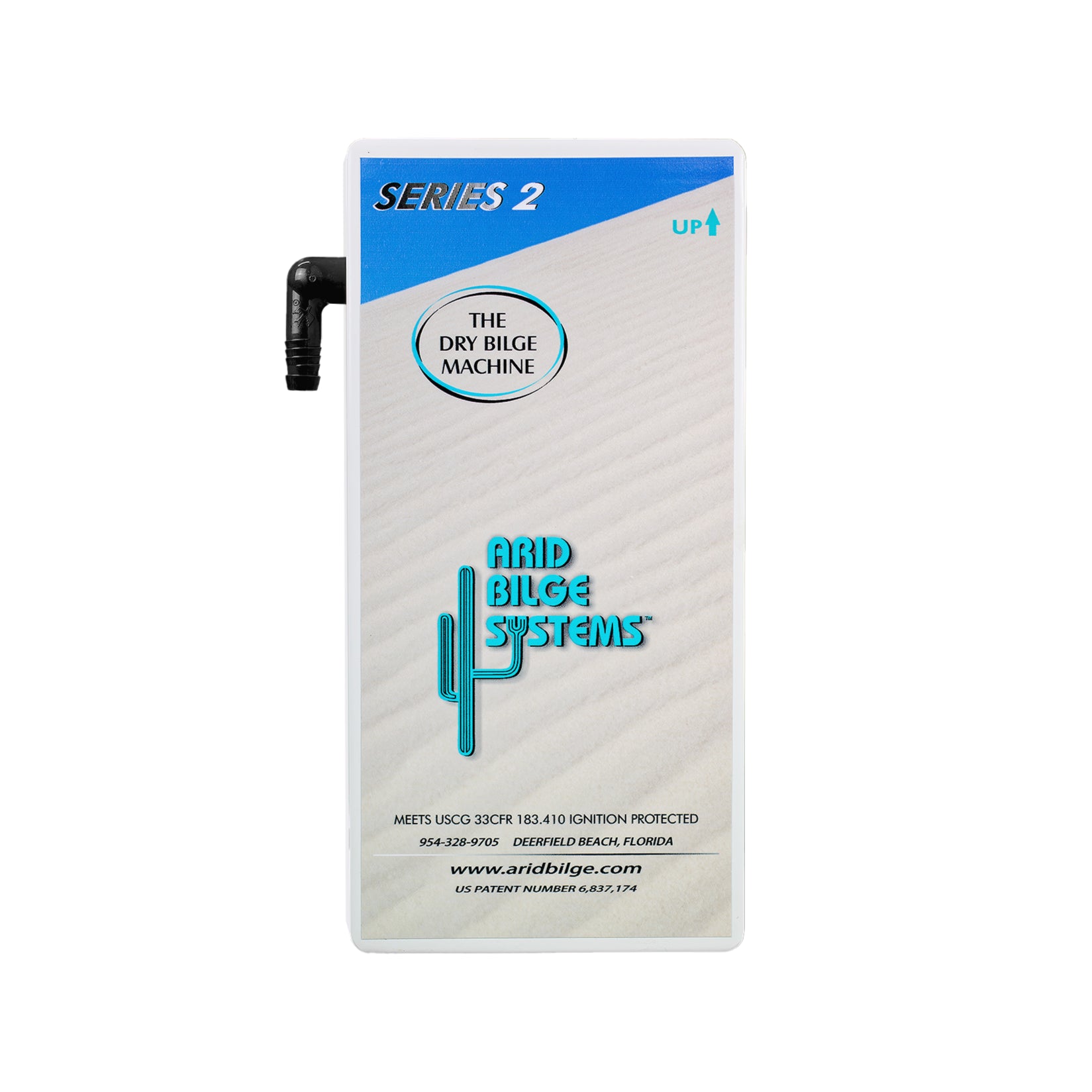

Arid Bilge Systems Series 2
Choose options
Series 2 units are available with two or three intake ports and standard solenoid intake valves or the premium, lower-maintenance pinch valves, and a power supply that accepts either 12 or 24 volt DC power.
Arid Bilge is automatic, reliable, flexible, and best of all, it really works.
- Eliminate the #1 source of onboard odors
- Lower onboard humidity and prevent condensation damage
- Find small leaks that now leave trails through a dry bilge
- Stop mold and mildew before it starts to grow
- Protect other systems such as generators, gyro stabilizers, & bow thrusters
- Enhance the vessel’s resale value
Available with 2 or 3 independently controlled intake ports (zones).
You will notice the Arid Bilge difference within 24 hours of installation
| Weight | 11 lbs |
|---|---|
| Dimensions | 14 × 10 × 10 in |
| Height |
11.75 inches / 30 centimeters |
| Box width |
5.75 inches / 14.5 centimeters |
| Depth |
7 inches / 17.5 centimeters |
| Box dry weight |
8 pounds / 3.75 kilograms |
| Intake tubing |
5/32” Polyethylene tubing, 100 feet provided |
| Unit Maximum Expected Flow Rate |
3.5 US gallons / 14 liters per hour |
| Power draw |
0.07 amp (70 milliamps) average standby draw, 0.7 amp average run draw @ 12 volt DC w/ 1 active zone |
| Certifications |
This unit meets USCG 33CFR 183.410 ignition protection |
| Discharge port |
Single point discharge port – 1/2" barbed fitting. |
| Control |
PLC Direct Logic 05 Koyo D0-05 processor, software proprietary. |
| Compressor / vacuum pump |
Schwarzer Precision |
| Main unit material |
Air injected white PVC plastic |
| Limited warranty |
One year parts and labor. |
| Available Upgrades |
Standard Solenoid Valves, Pinch Valves |

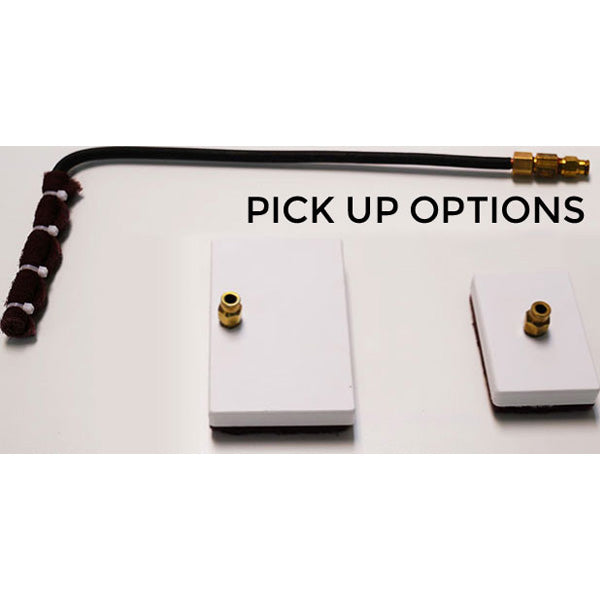

| Bilge pickup options |

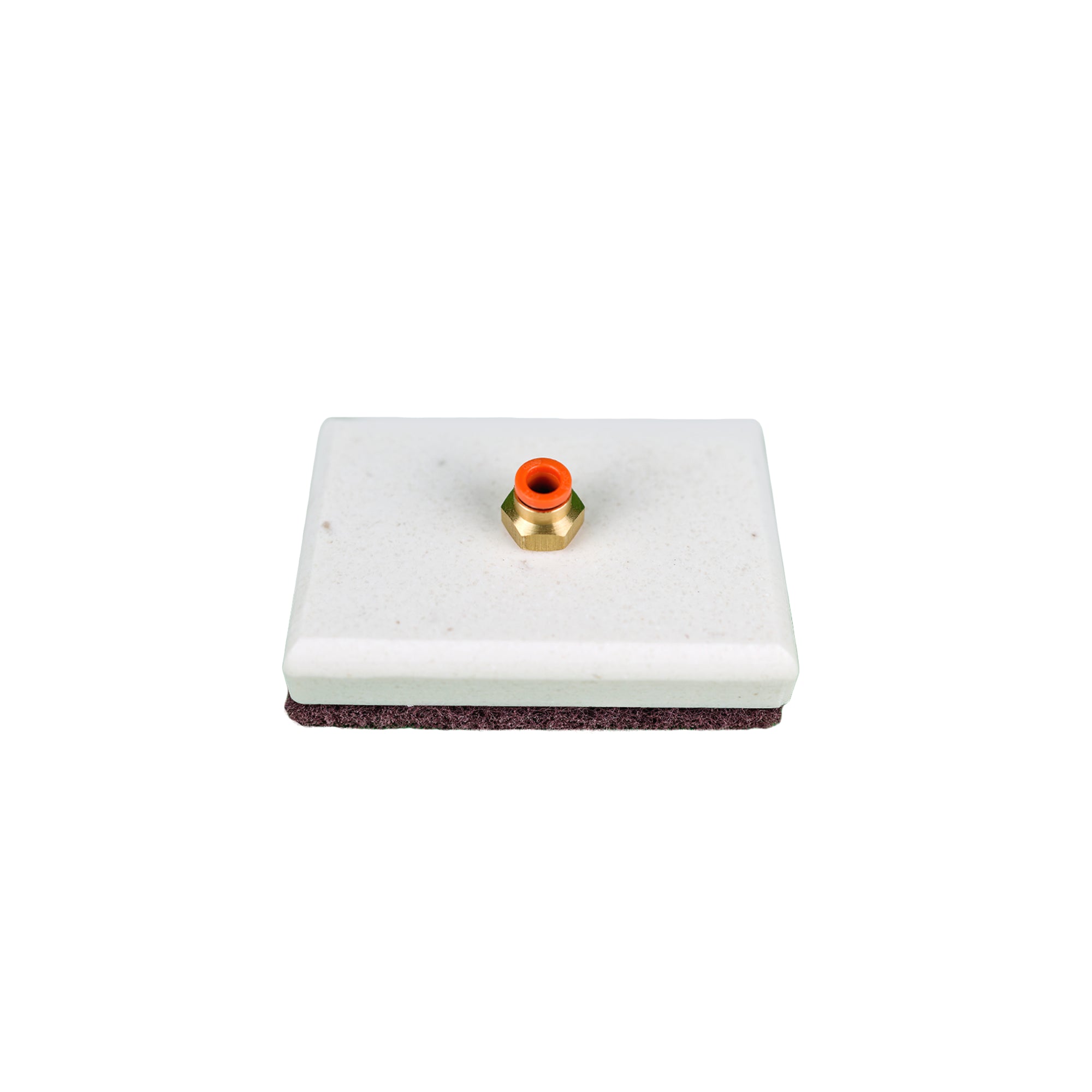

Mini Standard (most popular) for flat bottoms, offset for a light V bottom, wand for a sharper V bottom. One pickup of your choice is included for each zone plus one spare. |
| Zones Type |
Zones 2 or 3 independently controlled intakes |
| Power |
Accepts 12 volt DC or 24 volt DC input power. |
